KEY FEATURES
Reusable, Recyclable & Export Compliant.

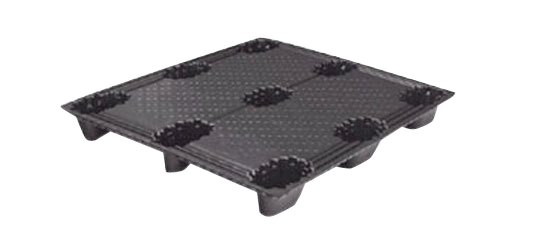

Twin-sheet thermoformed pallets are manufactured of high-density polyethylene (HDPE). DC1 pallets are scientifically engineered to meet the demanding needs of multiple markets.
The standard-duty pallet is resistant to weather and most chemicals and is easily sanitized.
Engineered with the patented TriMax design.
Meets or exceeds all requirements for international shipments.
Features and Benefits
- 40″ X 48″ footprint, 4-way access
- Strong and durable: Floor rated for 3000#
- Reusable, returnable & recyclable
- Patented TriMax Design, reduces fractures and increases deck stiffness and durability
- Oval leg design — limits the impact zone for fork times
- Ideal for closed loop systems — excellent return on investment
- Nine-leg, fully nestle
- No-Bind nesting, 3:1 ratio — reduces occupied warehouse space and transportation costs
- Weather-resistant — resists UV rays, cold, rain and heat. Excellent performance in temperatures ranging from 0°-120° F
- Convenient four-way entry
- Plastic pallets meet or exceed all exportation requirements for Europe and Asia
Options
- Custom colors available (8)
- Custom stripes (8 colors) available (only in 48 inch direction)
- Logo placement
- Legs available with or without drain holes
- Pocket recesses for label placement
- Available with Grip-Lok® Plus — significantly reduces product damage caused by slipping and sliding

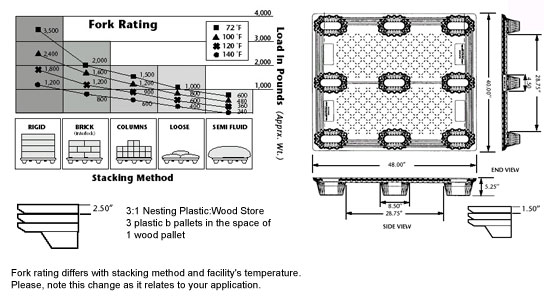

Dimensions | Height | Nested Trailer | Floor Ratings | Weight | ||||
L | W | Fork | Overall | Nesting | 48′ | 53′ | 3,500 lbs. | 14.5 lbs. |
48.00″ | 40.00″ | 3.75″ | 5.25″ | 1.50″ | 1,680 | 1,800 |
Notice: The information contained herein is offered without charge for use by technically qualified personnel at their discretion and risk. Each user must carefully consider the application requirements and final product suitability for their particular application. All statements, technical information and recommendations contained herein are based on data which we believe to be reliable, but the accuracy or completeness thereof is not guaranteed and no warranty of any kind is made with respect thereto. DC Series pallets are not designed to be used in open-rack systems.
