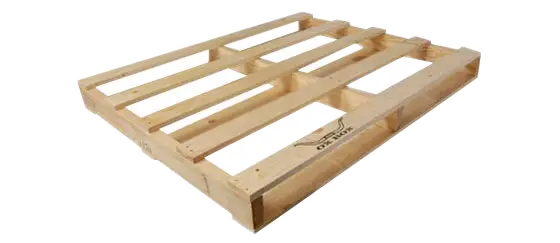

Classification: 42.00 x 52.00, Stringer-Class, Double-Face Non-Reversible, 2-Way, Limited-Use, New Manufacture
Unit Load Type: Uniformly Distributed — Full Pallet Coverage
Unit Load Weight Variability: Medium
Service Environment: Dry Environment (EMC <= 19%)
| Safe Max. Load | Deflection at Max. Load | User Specified Deflection Limit | Max. Load for Deflection Limit | Critical Member |
| 1966 lbs. | 0.22 in. | — | — | Top Deckboard |
Support Condition
Average Pallet Weight
| At Manufacture | At 15% MC | At 12% MC |
| 26 lbs. | 25 lbs. | 24 lbs. |
Dimensional Change due to Wood Drying
| Component | Original Dimension | Shrinkage from Manufacture to 19% MC | Shrinkage from Manufacture to 15% MC |
| Top Deckboards | 0.750 in. Thickness | 0.004 in. (+/- 0.001 in.) | |
| 3.500 in. Width | 0.020 in. (+/- 0.006 in.) | ||
| Stringers | 3.500 in. Height | 0.020 in. (+/- 0.006 in.) | |
| 1.500 in. Width | 0.008 in. (+/- 0.002 in.) | ||
| Bottom Deckboards | 0.750 in. Thickness | 0.004 in. (+/- 0.001 in.) | |
| 3.500 in. Width | 0.020 in. (+/- 0.006 in.) |
