28×35 HT Pallet Standard Duty

Export Compliant

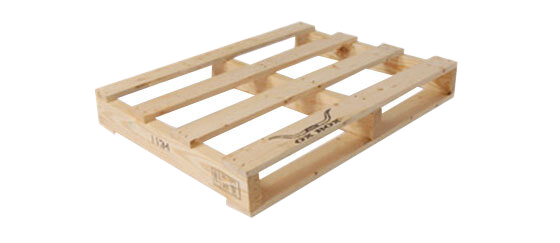

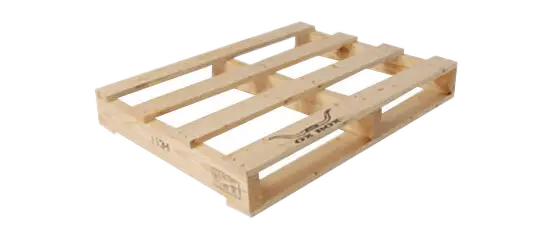

Image of wooden shipping pallet

Contact Us Today If You Need Assistance With Packaging Types

Classification: 28.00 x 35.00, Stringer-Class, Double-Face Non-Reversible, 2-Way, Limited-Use, New Manufacture

Unit Load Type: Uniformly Distributed — Full Pallet Coverage
Unit Load Weight Variability: Medium
Service Environment: Dry Environment (EMC <= 19%)

Safe Max. LoadDeflection at Max. LoadUser Specified Deflection LimitMax. Load for Deflection LimitCritical Member
3618 lbs.0.11 in.Top Deckboard

Support Condition

Average Pallet Weight

At ManufactureAt 15% MCAt 12% MC
17 lbs.16 lbs.16 lbs.



Dimensional Change due to Wood Drying

ComponentOriginal DimensionShrinkage from Manufacture to 19% MCShrinkage from Manufacture to 15% MC
Top Deckboards0.750 in. Thickness 0.005 in. (+/- 0.002 in.)
3.500 in. Width0.025 in. (+/- 0.007 in.)
Stringers3.500 in. Height 0.025 in. (+/- 0.007 in.)
1.500 in. Width0.011 in. (+/- 0.003 in.)
Bottom Deckboards0.750 in. Thickness 0.005 in. (+/- 0.002 in.)
3.500 in. Width0.025 in. (+/- 0.007 in.)
